The Internet Control Message Protocol (ICMP) is an essential component of the internet protocol suite, playing a crucial role in network communication and diagnostics. Its function is to provide feedback about the successful or unsuccessful delivery of IP packets, allowing network devices to troubleshoot and optimize their connections. But where exactly does ICMP fit within the Open Systems Interconnection (OSI) model's seven layers? This article will delve into the specifics of ICMP's place in the OSI model, exploring its role, functionality, and implications for network administrators and enthusiasts.
Understanding the OSI Model

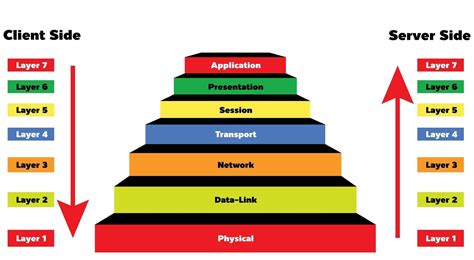

Before we delve into ICMP’s layer, let’s quickly review the OSI model. The OSI model is a conceptual framework that standardizes and simplifies the complex process of network communication. It divides network communication into seven distinct layers, each with its own specific functions and protocols. These layers, from the physical layer (Layer 1) to the application layer (Layer 7), ensure that data is transmitted efficiently and accurately across networks.
ICMP’s Role in Network Communication
ICMP is a network layer protocol, specifically designed to report errors and provide information about the delivery of IP packets. It operates at the Internet Layer (Layer 3) of the OSI model, the same layer as the Internet Protocol (IP). ICMP messages are encapsulated within IP packets and are used to diagnose and troubleshoot various network issues, such as packet loss, network congestion, and routing problems.
ICMP Message Types
ICMP supports several message types, each serving a specific purpose. Some of the most common ICMP messages include:
- Echo Request and Echo Reply: Used for ping operations, these messages help determine whether a host is reachable and responsive.
- Destination Unreachable: This message is sent when a packet cannot be delivered to its intended destination due to various reasons, such as host or network unreachability.
- Time Exceeded: Sent when a packet’s Time to Live (TTL) reaches zero, indicating that the packet has been in transit for too long.
- Redirect: Used to inform a host that a better route is available, allowing for more efficient routing.
- Source Quench: Sent by a router to a sender to request that it slow down its transmission rate due to network congestion.
ICMP and Network Diagnostics
ICMP is a valuable tool for network administrators and technicians. By analyzing ICMP messages, they can identify and troubleshoot a wide range of network issues. For example, if a network device consistently receives Destination Unreachable messages, it may indicate a misconfigured network or a malfunctioning router. Similarly, frequent Time Exceeded messages could suggest that a network route is too long or that there’s excessive network latency.
ICMP’s Place in the OSI Model
As mentioned earlier, ICMP operates at the Internet Layer (Layer 3) of the OSI model. This layer is responsible for logical addressing, routing, and fragmentation of data packets. ICMP works closely with IP to ensure the efficient and accurate delivery of data across networks. While IP focuses on delivering data packets to their intended destinations, ICMP provides feedback on the success or failure of these deliveries.
The Internet Layer: A Closer Look
The Internet Layer is a critical component of the OSI model. It sits between the Network Access Layer (Layer 2) and the Transport Layer (Layer 4). Its primary function is to facilitate communication between different networks, enabling the interconnection of diverse network technologies. By operating at this layer, ICMP can interact with IP and other Internet Layer protocols to ensure the smooth flow of network traffic.
ICMP’s Impact on Network Performance
ICMP’s role in network diagnostics can significantly impact network performance and efficiency. By quickly identifying and addressing network issues, administrators can minimize downtime and optimize network operations. For example, by analyzing ICMP messages, administrators can identify congested network segments and implement measures to alleviate the congestion, improving overall network performance.
Security Considerations
While ICMP is a valuable tool, it’s not without its security concerns. ICMP messages can sometimes be exploited by malicious actors for various purposes, such as network reconnaissance or distributed denial of service (DDoS) attacks. Network administrators must balance the need for effective diagnostics with the potential security risks associated with ICMP.
Real-World Applications of ICMP
ICMP finds applications in various network scenarios. For instance, network administrators often use ICMP Echo Requests (ping) to test network connectivity and response times. In addition, ICMP can be used for network monitoring, traffic analysis, and even for implementing network security measures.
| ICMP Application | Description |
|---|---|
| Network Troubleshooting | ICMP messages help identify and diagnose network issues, ensuring efficient and reliable connectivity. |
| Ping | Echo Request and Reply messages are used to determine the reachability and responsiveness of network hosts. |
| Traffic Analysis | By examining ICMP messages, administrators can gain insights into network traffic patterns and behaviors. |
| Security Monitoring | ICMP can be used to detect and mitigate certain types of network attacks, such as DDoS attacks. |
Future of ICMP
As network technologies evolve, so does the role of ICMP. While ICMP has been a cornerstone of network diagnostics for decades, there’s ongoing research and development to enhance its capabilities and address its limitations. For example, some modern network protocols, such as IPv6, include extensions to ICMP to provide more advanced diagnostic and troubleshooting features.
IPv6 and ICMPv6
IPv6, the next-generation Internet Protocol, includes a new version of ICMP known as ICMPv6. ICMPv6 builds upon the functionality of its predecessor, offering additional features and improvements. It includes extensions for neighbor discovery, router discovery, and more advanced diagnostics, making it better suited for the complexities of modern networks.
Conclusion
In the intricate world of network communication, ICMP plays a vital role. Operating at the Internet Layer of the OSI model, it provides crucial feedback on the delivery of IP packets, enabling network administrators to diagnose and optimize their networks. While its applications are vast and varied, its impact on network performance and security cannot be overstated. As network technologies continue to evolve, so too will the role and capabilities of ICMP, ensuring it remains a cornerstone of efficient and reliable network operations.
What is the OSI model, and why is it important?
+The OSI model is a conceptual framework that standardizes network communication. It divides network communication into seven distinct layers, each with its own specific functions and protocols. This standardization ensures that data is transmitted efficiently and accurately across diverse networks and devices.
What are the key functions of ICMP?
+ICMP’s primary functions include providing feedback about the delivery of IP packets and assisting in network diagnostics and troubleshooting. It helps identify issues such as packet loss, network congestion, and routing problems.
How does ICMP impact network performance and security?
+ICMP’s ability to diagnose network issues can significantly improve network performance and efficiency. However, it also presents security concerns, as it can be exploited for malicious purposes. Network administrators must carefully manage ICMP to balance these benefits and risks.
What is ICMPv6, and how does it differ from ICMP?
+ICMPv6 is the next-generation version of ICMP, designed for use with IPv6. It includes additional features and improvements, such as extensions for neighbor and router discovery, making it better suited for modern network complexities.
