A Deep Dive into the Science and Safety of Liquid Nitrogen Containers
Liquid nitrogen is a remarkable substance, offering unique properties that make it invaluable in various scientific, industrial, and medical applications. But handling and storing this cryogenic liquid safely is critical, given its extreme cold temperatures and potential hazards. This comprehensive guide aims to provide an in-depth understanding of liquid nitrogen storage, covering everything from the science behind it to best practices and real-world applications.
Understanding the Properties of Liquid Nitrogen
Liquid nitrogen, or LN2 as it’s often abbreviated, is the liquid state of nitrogen gas. It’s produced by cooling nitrogen to extremely low temperatures, typically below -196°C (-320.8°F). At this temperature, nitrogen transitions from a gas to a liquid, a process known as condensation.
The key properties of liquid nitrogen that make it so valuable include:
Extremely Low Temperature: Liquid nitrogen’s boiling point is a frigid -195.8°C (-320.4°F). This ultra-cold temperature allows it to maintain a liquid state even at standard atmospheric pressure.
Inert Nature: Nitrogen is an inert gas, meaning it doesn’t readily react with other substances. This property makes liquid nitrogen ideal for use in a variety of applications where maintaining a chemically stable environment is critical.
High Heat Transfer Capacity: Liquid nitrogen can absorb a large amount of heat without a significant increase in temperature. This makes it an excellent coolant for many processes.
Non-Toxic and Non-Flammable: Unlike some other cryogenic liquids, liquid nitrogen is non-toxic and non-flammable. This safety profile allows for a wider range of applications, including those in medical and food industries.
The Science of Liquid Nitrogen Storage
Storing liquid nitrogen safely and effectively requires an understanding of its unique properties and the challenges they present.
Boiling and Vaporization
Liquid nitrogen boils and vaporizes rapidly when exposed to room temperature, a process that can be both advantageous and potentially hazardous.
Advantages:
The rapid vaporization of liquid nitrogen can provide a powerful cooling effect, making it ideal for cryogenic applications.
Boiling liquid nitrogen can also be used to generate a large volume of nitrogen gas, which is useful in certain industrial processes.
Hazards:
The rapid release of nitrogen gas can displace oxygen, creating an oxygen-deficient environment. This is a serious safety concern, as it can lead to asphyxiation.
The extremely cold vapor can also cause frostbite or cold burns if it comes into contact with skin.
Thermal Insulation
Effective thermal insulation is critical in liquid nitrogen storage to prevent rapid boiling and maintain the liquid state.
Key Principles:
Vacuum Insulation: A vacuum between double-walled containers significantly reduces heat transfer, minimizing the loss of liquid nitrogen due to boiling.
Superinsulation: Using materials with extremely low thermal conductivity, like aerogels or vacuum-sealed panels, can further enhance insulation.
Multi-Layer Insulation: Combining multiple insulating materials can create a highly effective barrier, slowing the rate of heat transfer.
Best Practices for Liquid Nitrogen Storage
Storing liquid nitrogen safely requires a combination of robust equipment, careful handling, and strict adherence to safety protocols.
Choosing the Right Storage Containers
The type of storage container used for liquid nitrogen is critical to ensuring safety and efficiency.
Options:

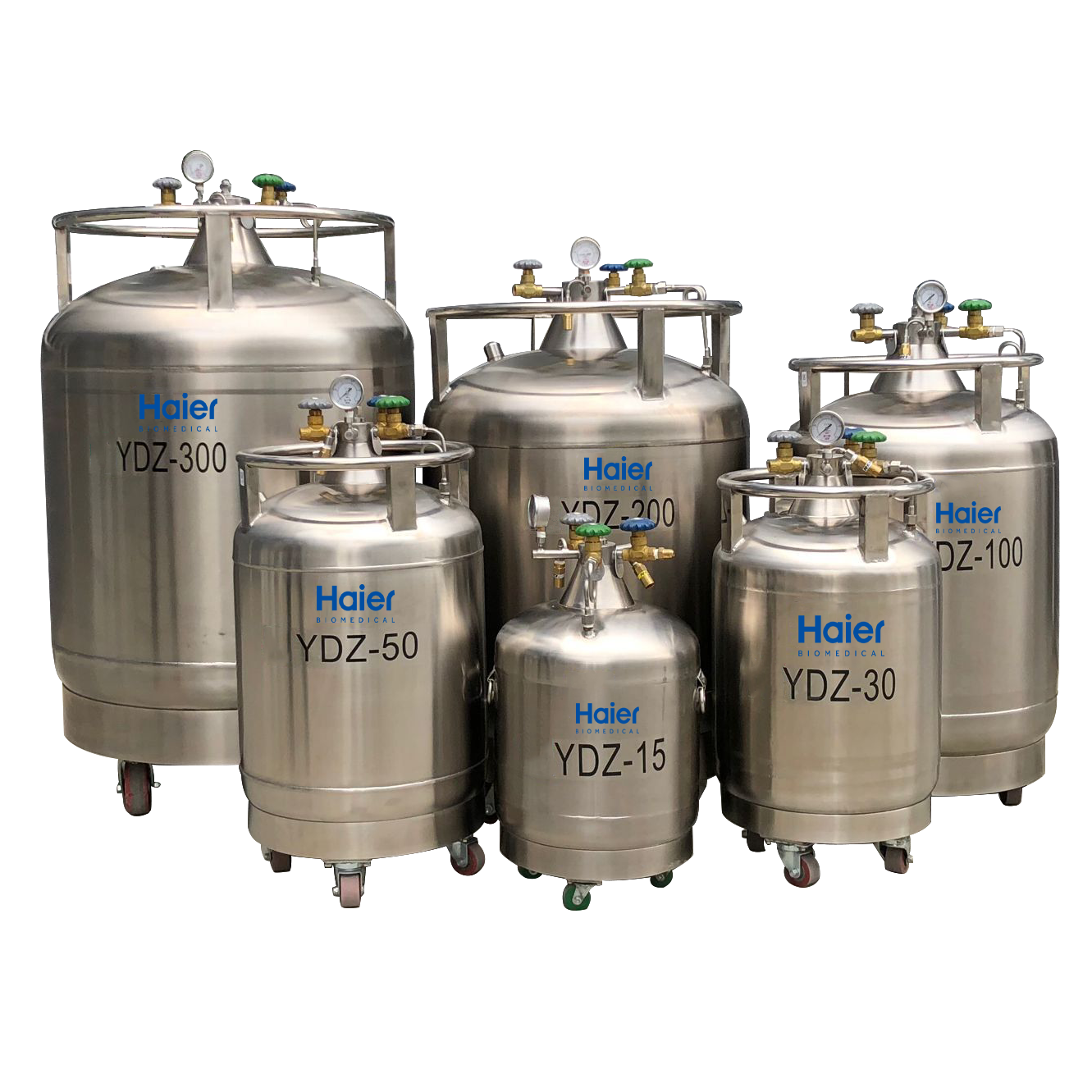

Dewars: These are double-walled, vacuum-insulated containers designed specifically for cryogenic liquids. Dewars come in various sizes, from small portable models to large stationary units.
Cryogenic Storage Tanks: These are larger-scale storage solutions, often used in industrial settings. They feature robust insulation and safety systems to handle the high volumes of liquid nitrogen.
Insulated Containers: For smaller-scale applications, well-insulated containers like stainless steel vacuum flasks can be used, although their capacity and insulation are typically less than Dewars.
Handling and Transferring Liquid Nitrogen
Safe handling and transferring of liquid nitrogen are essential to prevent accidents and ensure the integrity of the substance.
Key Practices:
Always wear appropriate personal protective equipment (PPE), including cryogenic gloves, eye protection, and insulated footwear.
Use specialized transfer devices, like cryogenic transfer lines or insulated dip tubes, to minimize heat transfer during the transfer process.
Ensure the storage container is in a well-ventilated area to prevent the buildup of nitrogen gas.
Regularly monitor the storage area for oxygen deficiency and ensure proper ventilation.
Safety Protocols and Emergency Procedures
Implementing strict safety protocols and ensuring all personnel are trained in emergency procedures is critical for liquid nitrogen storage.
Key Considerations:
Develop and regularly review emergency response plans specific to liquid nitrogen storage.
Ensure all personnel are trained to recognize the signs of oxygen deficiency and know the appropriate actions to take.
Have access to emergency oxygen supplies and ensure they are regularly inspected and maintained.
Install and maintain gas detection systems to monitor for nitrogen gas leaks and oxygen deficiency.
Real-World Applications of Liquid Nitrogen Storage
Liquid nitrogen storage is integral to a wide range of industries and scientific fields, each with its unique requirements and applications.
Scientific Research
In scientific research, liquid nitrogen storage is used for a variety of purposes, including:
Sample Preservation: Liquid nitrogen is used to preserve biological samples, such as tissues, cells, and DNA, for long-term storage.
Cryogenic Cooling: Research equipment, like superconducting magnets or cryo-electron microscopes, require liquid nitrogen cooling to operate.
Cryopreservation of Embryos: In reproductive biology, liquid nitrogen is used to preserve embryos for future use in assisted reproductive technologies.
Medical Applications
The medical field utilizes liquid nitrogen storage in several key areas:
Cryosurgery: Liquid nitrogen is used to freeze and destroy abnormal tissue, such as warts, moles, or cancerous cells.
Blood and Tissue Banking: Liquid nitrogen storage is crucial for preserving blood and tissue samples for transplantation and research.
Vaccine Storage: Many vaccines require ultra-low temperature storage, which liquid nitrogen can provide.
Industrial and Commercial Uses
Liquid nitrogen storage also has a wide range of industrial and commercial applications:
Food Industry: Liquid nitrogen is used to quickly freeze food products, preserving their texture and flavor. It’s also used to create unique culinary effects, like liquid nitrogen ice cream.
Welding and Metalworking: Liquid nitrogen is used to cool and stabilize metal during welding and metalworking processes.
Fire Suppression: In certain industrial settings, liquid nitrogen can be used as a fire suppressant due to its inert nature and ability to displace oxygen.
Future Trends and Innovations
The field of liquid nitrogen storage is continually evolving, with ongoing research and development aimed at improving safety, efficiency, and sustainability.
Advanced Insulation Materials
Researchers are exploring new insulation materials and technologies to further enhance the efficiency of liquid nitrogen storage.
Potential Innovations:
Graphene-Based Insulation: Graphene, a highly conductive material, is being investigated for its potential to create ultra-efficient insulation when combined with aerogels.
Self-Healing Insulation: Some researchers are developing insulation materials that can self-repair any damage, ensuring optimal performance over time.
Sustainable Liquid Nitrogen Production
As sustainability becomes an increasingly important consideration, there’s a growing focus on developing more environmentally friendly methods of producing liquid nitrogen.
Emerging Technologies:
Renewable Energy-Powered Plants: Using renewable energy sources, like solar or wind power, to run liquid nitrogen production plants could significantly reduce their environmental impact.
Carbon Capture and Storage: Integrating carbon capture and storage technologies into liquid nitrogen production processes could reduce greenhouse gas emissions.
Expert Perspective: An Interview with Dr. Elena Martinez, Cryogenics Expert
Dr. Elena Martinez, a leading researcher in the field of cryogenics, shares her insights on the future of liquid nitrogen storage.
Q: What are the biggest challenges in liquid nitrogen storage today, and how do you see these evolving in the future?
A: One of the primary challenges is maintaining efficient insulation while also ensuring safety. As we continue to develop more advanced insulation materials, we must also ensure they don’t compromise the safety of the system.
Q: How do you see the role of liquid nitrogen storage evolving in various industries?
A: Liquid nitrogen storage will likely become even more integral to industries like healthcare and scientific research, where ultra-low temperature storage is crucial. We’re also seeing increasing interest in liquid nitrogen storage for food preservation, as consumers demand fresher, more sustainable food products.
Q: What advice would you give to someone new to the field of liquid nitrogen storage?
A: Safety should always be the top priority. Ensure you understand the unique hazards associated with liquid nitrogen and implement robust safety protocols. Also, stay informed about the latest developments in the field, as new technologies and best practices are continually emerging.
Conclusion: The Essential Guide to Liquid Nitrogen Storage
Liquid nitrogen storage is a complex but fascinating field, combining scientific understanding with practical application. From its unique properties to the safety considerations and real-world applications, liquid nitrogen storage is a critical component in a wide range of industries and scientific endeavors.
As we continue to explore the potential of liquid nitrogen, from scientific research to culinary arts, it’s essential to approach this powerful substance with respect and a commitment to safety. With ongoing advancements in technology and a deeper understanding of its properties, liquid nitrogen storage will continue to play a pivotal role in shaping our world.
