Simple Guide: Rotating X-Axis Labels in ggplot

Mastering the Art of Rotating X-Axis Labels in ggplot: A Comprehensive Guide

In the world of data visualization, clear and concise labeling is crucial for effective communication. When dealing with long or dense X-axis labels in ggplot, rotation becomes a powerful tool to ensure legibility and maintain the aesthetic appeal of your plots. This guide will take you through the process of rotating X-axis labels in ggplot, providing you with the knowledge to create visually appealing and informative visualizations.

Understanding the Need for Rotation

Long X-axis labels, often containing categorical data or long text strings, can crowd the plot area, making it difficult for readers to interpret the data. Rotation of these labels can significantly improve the readability of your visualizations, especially when dealing with limited space or a large number of categories.

Consider the following scenario: you are creating a bar chart to compare sales performance across various regions. The X-axis labels represent the region names, which can be lengthy and varied. Without rotation, these labels might overlap, making it challenging to distinguish one region from another. By rotating the labels, you ensure that each label is clearly visible, enhancing the overall clarity of your plot.

Implementing Rotation in ggplot

ggplot, a powerful data visualization package in R, provides a straightforward way to rotate X-axis labels. Here's a step-by-step guide to help you achieve this:

Step 1: Load Necessary Libraries

Ensure you have the ggplot2 package installed and loaded into your R environment. If you haven't installed it yet, you can do so using the following command:

install.packages("ggplot2")

Then, load the library:

library(ggplot2)

Step 2: Create Your Data Frame

For this example, we'll use a sample data frame with sales data for different regions. Here's how you can create it:

# Sample data
sales_data <- data.frame(
  region = c("North", "South", "East", "West", "Northeast", "Southeast", "Central"),
  sales = c(25000, 18000, 22000, 15000, 28000, 20000, 12000)
)

Step 3: Create the ggplot Object

Now, let's create a basic bar chart using ggplot. We'll use the aes function to map the region variable to the X-axis and the sales variable to the Y-axis:

# Create ggplot object
gg_plot <- ggplot(data = sales_data, aes(x = region, y = sales))

Step 4: Add the Bar Chart Layer

Next, we'll add the bar chart layer to our ggplot object using the geom_bar function. We'll also specify the stat argument as "identity" to ensure the bars represent the raw sales values:

gg_plot +
  geom_bar(stat = "identity")

Step 5: Rotate X-Axis Labels

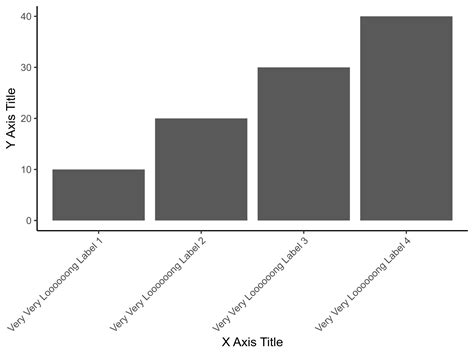

To rotate the X-axis labels, we'll use the theme function and set the axis.text.x element to have a hjust (horizontal justification) of 1 and a angle of 45 degrees. This will rotate the labels diagonally, providing better readability:

gg_plot +
  geom_bar(stat = "identity") +
  theme(axis.text.x = element_text(hjust = 1, angle = 45))

Step 6: Fine-Tuning the Rotation

The default rotation angle of 45 degrees may not always provide the best readability. You can experiment with different angles to find the optimal value for your specific dataset. Here's an example where we rotate the labels by 60 degrees:

gg_plot +
  geom_bar(stat = "identity") +
  theme(axis.text.x = element_text(hjust = 1, angle = 60))

Additional Tips for Effective Label Rotation

While rotating X-axis labels is a powerful technique, there are a few considerations to keep in mind to ensure the best visual outcome:

• Label Length: Ensure that your labels are not excessively long. If possible, consider abbreviating or shortening long labels to maintain readability even without rotation.
• Font Size: Adjust the font size of the labels to strike a balance between legibility and space utilization. Smaller font sizes can help accommodate more labels in a limited space.
• Label Alignment: Experiment with different hjust values to find the optimal horizontal justification for your labels. This can help ensure that the labels are evenly distributed and do not overlap.

Real-World Application

Let's take a look at how rotating X-axis labels can improve the readability of a real-world dataset. We'll use the mpg dataset from the ggplot2 package, which contains information about various car models and their fuel efficiency.

Suppose we want to visualize the distribution of fuel efficiency across different classes of cars. The class variable in the mpg dataset contains the car class names, which can be lengthy. Here's how we can create a bar chart with rotated X-axis labels:

library(ggplot2)

# Load mpg dataset
data(mpg)

# Create ggplot object
gg_plot <- ggplot(data = mpg, aes(x = class, y = hwy))

gg_plot +
  geom_bar(stat = "identity") +
  theme(axis.text.x = element_text(hjust = 1, angle = 45))

By rotating the X-axis labels, we ensure that each car class label is clearly visible, making it easier to interpret the distribution of fuel efficiency.

Conclusion

Rotating X-axis labels in ggplot is a valuable skill for any data visualization enthusiast. By following the steps outlined in this guide, you can enhance the readability and aesthetic appeal of your plots, ensuring that your data is presented in the clearest and most effective manner. Remember to experiment with different rotation angles and label justifications to find the optimal settings for your specific dataset.
