5 Tips: POE Port Connections

Network connectivity is an essential aspect of modern technology, and understanding the various methods of establishing reliable connections is crucial. One such method is the Power over Ethernet (PoE) technology, which enables the transmission of both data and electrical power over Ethernet cables. In this article, we delve into the world of PoE port connections, offering expert insights and practical tips to ensure seamless and efficient network deployments.

Unraveling the Power over Ethernet Technology

Power over Ethernet (PoE) is a groundbreaking technology that revolutionized the way network devices are powered and connected. It allows for the simultaneous transmission of data and electrical power over standard Ethernet cables, eliminating the need for separate power supplies or outlets. This innovative approach has brought about significant advantages, particularly in environments where devices are deployed in hard-to-reach locations or where the installation of power outlets is impractical.

PoE technology operates on the principle of delivering power to devices such as IP cameras, wireless access points, VoIP phones, and other network-enabled devices through the same Ethernet cable that provides data connectivity. This simplifies the installation process, reduces clutter, and ensures a more efficient and cost-effective networking infrastructure.

Key Benefits of PoE Technology

• Flexible Deployment: PoE enables the placement of network devices anywhere within the reach of Ethernet cables, without the constraints of power outlets.
• Cost Savings: By eliminating the need for additional power supplies and outlets, PoE reduces installation and maintenance costs.
• Scalability: PoE supports the easy addition of new devices to the network, making it an ideal solution for growing businesses and organizations.
• Reliability: With a single cable providing both power and data, PoE offers a more reliable and efficient connectivity solution.
• Safety: PoE technology adheres to strict safety standards, ensuring that devices receive the correct amount of power without the risk of overloading.

The Fundamentals of PoE Port Connections

At the core of PoE technology are the PoE port connections, which play a critical role in establishing reliable and efficient network setups. Understanding the intricacies of PoE port connections is essential for network administrators and technicians to ensure optimal performance and minimize potential issues.

Types of PoE Port Connections

PoE port connections come in various types, each designed to cater to specific device requirements and network configurations. The two primary types of PoE port connections are:

• PoE Injector Ports: These ports are used to inject power into an Ethernet cable, enabling the transmission of power to devices that require it. PoE injectors are typically employed in scenarios where existing Ethernet cables do not provide power, such as in legacy network installations.

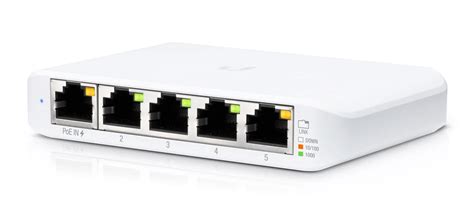

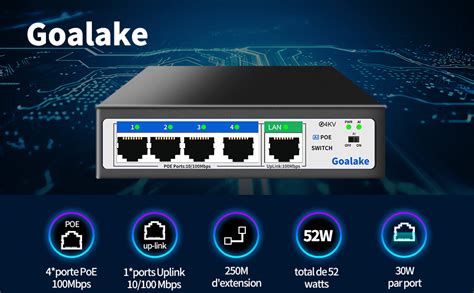

• PoE Switch Ports: PoE switch ports are integrated into network switches, allowing them to deliver power to connected devices while also providing data connectivity. These ports are commonly found in modern network switches, offering a convenient and efficient way to power and connect network devices.

PoE Standards and Compatibility

PoE technology has evolved over the years, resulting in multiple standards and specifications. Understanding these standards is crucial to ensure compatibility and optimal performance. The main PoE standards include:

• IEEE 802.3af (PoE): This is the original PoE standard, providing up to 15.4 watts of power per port. It is suitable for devices such as VoIP phones and wireless access points with low power requirements.
• IEEE 802.3at (PoE+): PoE+ offers an increased power budget of up to 30 watts per port, catering to devices with higher power needs, such as IP cameras and video conferencing equipment.
• IEEE 802.3bt (PoE++ or 4PPoE): The latest PoE standard, IEEE 802.3bt, introduces two types of power delivery: Type 3 (60 watts) and Type 4 (100 watts). These standards enable the powering of high-power devices, including PTZ cameras and high-end wireless access points.

It is important to note that PoE standards are backward compatible, meaning that devices designed for earlier standards can still function with newer PoE-enabled switches or injectors. However, to fully leverage the benefits of higher power delivery, devices should be compatible with the corresponding PoE standard.

Optimizing PoE Port Connections

To ensure the best performance and reliability in PoE port connections, several factors need to be considered and optimized. Here are five expert tips to maximize the potential of PoE technology:

Tip 1: Assess Device Power Requirements

Before establishing PoE port connections, it is crucial to assess the power requirements of the devices to be connected. Different devices have varying power needs, and failing to provide adequate power can lead to device malfunction or reduced performance. Refer to the device specifications or consult with the manufacturer to determine the required PoE standard.

Tip 2: Choose the Right PoE Switch or Injector

Selecting the appropriate PoE switch or injector is essential for a successful PoE implementation. Consider factors such as the number of ports required, the available power budget, and the desired PoE standard. Ensure that the chosen PoE switch or injector is compatible with the devices to be connected and has sufficient power to support them.

Tip 3: Proper Cable Management

Efficient cable management is vital to ensure reliable PoE port connections. Use high-quality Ethernet cables that meet the required standards, such as Cat5e or Cat6, to ensure proper power and data transmission. Avoid excessive cable bending or twisting, as this can affect signal integrity and power delivery. Additionally, consider using cable management accessories, such as cable ties or racks, to organize and secure the cables.

Tip 4: Regularly Monitor PoE Performance

To maintain optimal PoE performance, it is essential to monitor the power and data transmission regularly. Network management software or tools provided by PoE switch manufacturers can assist in tracking power usage, identifying potential issues, and ensuring that devices are receiving the required power. Regular monitoring helps identify and resolve any connectivity or power-related problems promptly.

Tip 5: Consider Redundancy and Backup Power

Implementing redundancy measures is crucial to ensure uninterrupted network connectivity. Consider using PoE switches or injectors with redundant power supplies to mitigate the risk of power failures. Additionally, backup power solutions, such as UPS (Uninterruptible Power Supply) systems, can provide temporary power during outages, ensuring that critical network devices remain operational.

Real-World PoE Port Connection Examples

To illustrate the practical application of PoE port connections, let’s explore a few real-world scenarios:

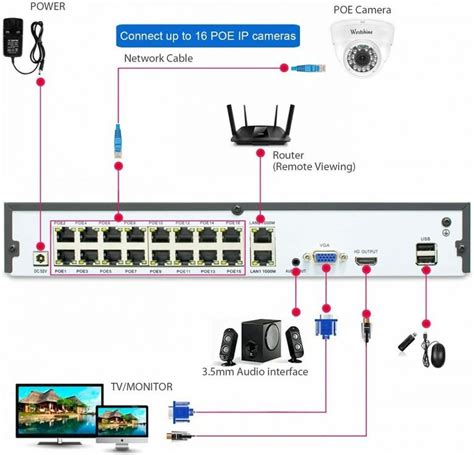

Scenario 1: Deploying IP Cameras in a Warehouse

In a large warehouse setting, deploying IP cameras for security and surveillance purposes can be challenging due to the lack of power outlets. PoE technology provides an ideal solution. By utilizing PoE switches with sufficient power output, cameras can be strategically placed throughout the warehouse, ensuring comprehensive coverage without the need for additional wiring or power installations.

Scenario 2: Upgrading Wireless Access Points in an Office

When upgrading wireless access points in an office environment, PoE port connections offer a seamless and cost-effective approach. By replacing legacy access points with PoE-enabled models, network administrators can leverage the existing Ethernet infrastructure while providing improved wireless connectivity. PoE switches with ample port capacity and power budget can support multiple access points, ensuring reliable and high-speed wireless connections for employees.

Scenario 3: Implementing VoIP Phones in a Call Center

In a call center environment, where reliable communication is critical, PoE technology simplifies the deployment of VoIP phones. By utilizing PoE switches, call center operators can connect VoIP phones to the network and power them simultaneously. This eliminates the need for separate power supplies for each phone, resulting in a more organized and efficient workspace.

Conclusion: Empowering Networks with PoE Port Connections

Power over Ethernet (PoE) technology has revolutionized network connectivity, offering a versatile and efficient solution for powering and connecting a wide range of devices. By understanding the fundamentals of PoE port connections and implementing best practices, network administrators can ensure reliable, scalable, and cost-effective network deployments. From security cameras to wireless access points and VoIP phones, PoE technology empowers organizations to build robust and future-proof network infrastructures.
